Specifications

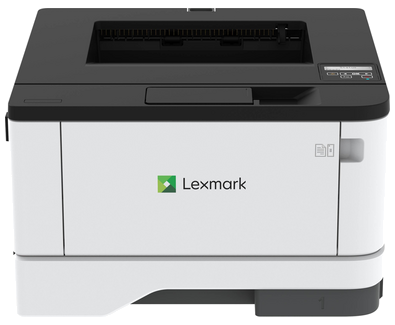

Light, compact and fast, the M1342 supports output of up to 40 pages per minute*, wired and wireless connectivity, and an optional 550-sheet paper tray.

Part Number

29S0435

Print Technology

Black & White Laser Printer

Workgroup Size

Small Workgroup

Touch Screen Display

No

Display

2-line All Points Addressable (APA) monochrome LCD display

Print Speed (A4, Black)

Up to 40 ppm⁶

Print Speed (A4, Black) Duplex

Up to 18 spm⁶

Time to First Page (Black)

As fast as 5.9 seconds

Duplex (2-sided) Printing

Integrated Duplex

Print Resolution, Black

2400 IQ (2400 x 600 dpi)

600 x 600 dpi

Processor Speed

Dual Core, 1.0 GHz

Memory, Standard

256 MB

Memory, Maximum

256 MB

Hard Disk

Not Available

Apple Operating Systems Supported

Support is provided through AirPrint and AirScan only

Citrix MetaFrame

Microsoft Windows Server 2012 R2 Datacenter Edition running Citrix XenApp 7.5, 6, 7, 8, 9, 11, 12, 13, 14, 15, 16

Microsoft Windows Server 2012 Datacenter Edition running Citrix XenApp 7.5, 6, 7, 8, 9, 11, 12, 13, 14, 15, 16

Microsoft Windows Server 2012 Foundation running Citrix XenApp 6.0, 6.5

Microsoft Windows Server 2012 Essentials running Citrix XenApp 6.0, 6.5

Microsoft Windows Server 2012 Standard running Citrix XenApp 6.0, 6.5

Linux Operating Systems Supported

Ubuntu 20.04

Debian 10

SUSE Linux Enterprise Server 12 SP5

OpenSUSE 15.2

Debian 11

Ubuntu 22.04

Fedora 36

Fedora 37

SUSE Linux Enterprise Server 15 SP4

OpenSUSE 15.4

Red Hat Linux 8.7

Red Hat Linux 9.1

Microsoft Windows Operating Systems Supported

Windows 7

Windows 7 x64

Windows 8

Windows 8 x64

Windows Server 2012

Windows 8.1

Windows Server 2012 R2

Windows 10

Windows Server 2016

Windows Server 2019

Windows Server 2022

Novell Operating Systems Supported

Novell NetWare 6.5 Open Enterprise Server

Novell Open Enterprise Server 2 (SP3) on SuSE Linux Enterprise Server 10 SP4 (x86 and x64) 3

Novell Open Enterprise Server 11 (SP3) on SuSE Linux Enterprise Server 11 SP4 (x86 and x64)

Novell Open Enterprise Server 11 (SP3) on SuSE Linux Enterprise Server 12 SP1 (x86 and x64)

Novell Open Enterprise Server 15 (SP1) on SuSE Linux Enterprise Server 11 SP4 (x86 and x64)

Included Paper Handling

250-Sheet Input

100-Sheet Multipurpose Feeder

150-Sheet Output Bin

Integrated Duplex

Optional Paper Handling

550-Sheet Tray

Paper Input Capacity, Standard

Up to 350 pages 75 gsm bond

Paper Input Capacity, Maximum

Up to 900 pages 75 gsm bond

Paper Output Capacity, Standard

Up to 150 pages 75 gsm bond

Paper Output Capacity, Maximum

Up to 150 pages 75 gsm bond

Paper Weight Range Supported - Standard Tray (gsm)

60 - 120 gsm

Paper Weight Range Supported - Multipurpose Feeder (gsm)

60 - 217 gsm

Finishing Option

No

Number of Paper Inputs, Standard

2

Number of Paper Inputs, Maximum

3

Media Types Supported

Card Stock

Envelopes

Paper Labels

Plain Paper

Refer to the Paper & Specialty Media Guide

Media Sizes Supported

10 Envelope

7 3/4 Envelope

9 Envelope

A4

A5

B5 Envelope

C5 Envelope

DL Envelope

Executive

Folio

JIS-B5

Legal

Letter

Statement

Universal

Oficio

A6

Standard Ports

Ethernet 10/100BaseTX (RJ-45)

USB Compatible with USB 2.0 Specification (Type B)

Direct USB

No

Ethernet Network

Yes

Wireless

Yes

Network Protocol Support

TCP/IP IPv4

TCP/IP IPv6

TCP

UDP

IPSEC w/ IPv4

IPSEC w/ IPv6

ICMP

IGMP

802.1x

Network Printing Methods

LPR/LPD

Enhanced IP (Port 9400)

FTP, TFTP

IPP 1.0, 1.1, 2.0 (Internet Printing Protocol)

Microsoft Web Services WSD

Network Management Protocols¹

HTTP

HTTPs (SSL/TLS)

SNMPv1, SNMPv2c

SNMPv3

WINS

IGMP

BOOTP, RARP

DHCP

ICMP

DNS

SMTP

DDNS

mDNS

ARP

NTP

Telnet

Finger



Network Security

SNMPv3

802.1x Authentication: MD5, MSCHAPv2, LEAP, PEAP, TLS, TTLS

Printable Area (metric)

5.0 mm of the top, bottom, right and left edges (within)

Printer Languages (Standard)

PCL 5c Emulation

PCL 5e Emulation

PCL 6 Emulation

PostScript 3 Emulation

Direct Image

PDF 1.7 emulation

Fonts and Symbol Sets

3 of 9 scalable PCL 5e fonts in Narrow, Regular and Wide

2 PCL bitmap fonts

89 scalable PostScript fonts

OCR-A, OCR-B scalable PCL 5e fonts

For more information, refer to the Technical Reference.

89 scalable PCL fonts

Laser Cartridge Yields (up to)⁵



18,000-page High Yield Cartridge

Imaging Unit Estimated Yield

Up to 40000 pages, based on 5 average letter/A4 size pages per print job and ~ 5% coverage for CS/CX96x, CX83x, CX95x, and MX95x printer series, or based on 3 average letter/A4 size pages per print job and ~ 5% coverage for all other printers⁴

Cartridge(s) Shipping with Product

3,000-page Return Program Toner Cartridge

Replacement Cartridges:

Product functions only with replacement cartridges designed for use in a specific geographical region. See www.lexmark.com/regions for more details.

Packaged Size (mm - H x W x D)

280 x 410 x 420 mm

Packaged Weight, kg

10.52 kg

Size (mm - H x W x D)

222 x 368 x 363 mm

Weight

9.3 kg

Noise Level, Idle

14 dBA

Noise Level (Print), Operating

53 dBA

Duplex Print Noise Level, Operating

50 dBA

Quiet Mode

49 dBA

ENERGY STAR

Yes

Average Power (Hibernate Mode)

0.1 watts

Average Power (Sleep Mode)

0.9 watts

Average Power (Ready Mode)

4.9 watts

Average Power (Printing)

570 watts

Average Power while Printing Duplex

305 watts

ENERGY STAR Typical Electricity Consumption (TEC)

0.47 kilowatt-hours per week

Product Warranty

1-Year Advanced Exchange, 3-5 Business Day Ground Shipment

Product Certifications

ENERGY STAR, ICES-003 Class B, BSMI Class B, US FDA, UL 60950-1, FCC Class B, cUL CAN/CSA-C22.2 60950-1, NOM, CB EN/IEC 60950-1, CB EN/IEC 60825-1, CE DoC (EN 62301 Class B, EN 62311, CE EN/IEC 60950-1, CE EN/IEC 60825-1, EN 61000-3, EN 55022 Class B, EuP, EN 55024, UL), EFTA (CE), KCC, CCC, CECP, CEL, C-tick DoC, UL-AR, KC mark, UL GS mark, EC 1275, MET-I, ISO 532B, ECMA-370, TED, GOST-R, SII, TER, DE-UZ 205, Wi-Fi CERTIFIED, China Green Product (CGP), Mopria Certified

Maximum Monthly Duty Cycle

Up to 80000 pages per month³

Recommended Monthly Page Volume

800 - 8000 pages²

Specified Operating Environment

Humidity: 8 to 80% Relative Humidity

Temperature: 10 to 32°C (50 to 90°F)

Altitude: 0 - 2896 metres

License/Agreement Terms

Printers are sold subject to certain license/agreement conditions. See www.lexmark.com/printerlicense for details.

Country of Origin

China (PRC)

UNSPSC Code

43212105

¹This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (http://www.openssl.org/)

²"Recommended Monthly Page Volume" is a range of pages that helps customers evaluate Lexmark’s product offerings based on the average number of pages customers plan to print on the device each month. Lexmark recommends that the number of pages per month be within the stated range for optimum device performance, based on factors including: supplies replacement intervals, paper loading intervals, speed, and typical customer usage.

³"Maximum Monthly Duty Cycle" is defined as the maximum number of pages a device could deliver in a month using a multishift operation. This metric provides a comparison of robustness in relation to other Lexmark printers and MFPs.

⁴Actual Yield may vary based on other factors such as device speed, paper size and feed orientation, toner coverage, tray source, percentage of black-only printing and average print job complexity.

⁵Average yield based on approximately 5% print coverage.

⁶Print and copy speeds measured in accordance with ISO/IEC 24734 and ISO/IEC 24735 respectively (ESAT). For more information see: www.lexmark.com/ISOspeeds.
